A few tricks for removing broken exhaust studs

Well, I finally decided to do something about that annoying exhaust leak, so I tore down the van and found I have a cracked manifold and a broken exhaust stud. I know some of you have asked about removing broken exhaust studs in the past, so I thought I'd do a write-up showing you how I do it. Due to years of experience as an aircraft toolmaker, I have developed a unique and unorthodox method for drilling out broken studs. Unfortunately there is some special and possibly hard to find equipment I use, but hopefully seeing the way I do it may give you ideas of your own. All the special bushings I used for this write-up were purchased at Boeing Surplus in Renton, WA and cost about a buck or 2.

Okay, 1st step is to clean the area around the broken stud with a strong chemical like carb cleaner, brake clean, acetone, or any cleaning chemical similar in strength.
http://i8.photobucket.com/albums/a23...01IMG_8788.jpg

http://i8.photobucket.com/albums/a23...02IMG_8790.jpg

I need to anchor something to the head to keep my drill bit steady and on-target. For this job I have chosen to use a 1/2" ID knurled tooling bushing. The next step is to find a way to positively index the bushing to the center of the hole. For this I have chosen to use an old exhaust manifold stud with tape wrapped around it.
http://i8.photobucket.com/albums/a23...03IMG_8792.jpg

http://i8.photobucket.com/albums/a23...04IMG_8793.jpg

Okay, so now I have the bushing and a way to center it, I need a way to temporarily secure it to the head. Super glue and Loctite #7452 Accelerator are great for this. With one hand I locate the bushing / stud to the desired position, and with the other hand I apply super glue between the head and the bushing. Now I grab the accelerator spray and spray it onto the exposed glue. Accelerator spray is awesome stuff. It chemically activates the superglue causing it to cure instantly.
http://i8.photobucket.com/albums/a23...05IMG_8795.jpg

Within seconds I can let go of the bushing and it will stay put all by itself! (sorry there's not a picture of the gluing and accelerating, I was using both my hands at the time)
http://i8.photobucket.com/albums/a23...06IMG_8796.jpg

Okay, so the glue may hold the bushing and the stud, but that's about all it will do. What I need now is something to beef it up. Bondo is just the ticket for this job.
http://i8.photobucket.com/albums/a23...07IMG_8798.jpg

http://i8.photobucket.com/albums/a23...08IMG_8800.jpg

Okay, here's a picture of the bushing secured with Bondo. The Bondo does a couple of things. It gives me something to grab onto and it mates perfectly with the irregular surface of the head. While drilling I can push against the bushing and it will guide my drill bit straight. Even if the bushing breaks off the head during drilling (and quite often they will), It still gives me a reference point and I can push the bushing flat with one hand while I run the drill with the other.
http://i8.photobucket.com/albums/a23...09IMG_8801.jpg

http://i8.photobucket.com/albums/a23...10IMG_8802.jpg

Now that the bushing is secure, I need to drill a pilot hole in the broken stud. To keep the 1/8" drill bit centered, I am going to use a 1/8" drill bushing. I didn't have a bushing that went from 1/8" up to 1/2", so I simply pushed 2 bushings together to do the job.
http://i8.photobucket.com/albums/a23...11IMG_8809.jpg

Just in case the stud is loose in the hole, I don't want the drilling action to drive it deeper. For this reason I am going to use a 1/8" reverse ground drill bit for drilling the pilot hole. Sometimes you get lucky and while drilling, the broken bolt or stud will pop right out. Wishful thinking? We will see.
http://i8.photobucket.com/albums/a23...12IMG_8810.jpg

Next I push the pilot bushing into the knurled bushing and start drilling. In this case, I am going to drill all the way through the broken stud. You will see why after a few more steps. Tip: Be sure to lubricate your drill bit with cutting oil, or you won't get too far.
http://i8.photobucket.com/albums/a23...13IMG_8811.jpg

http://i8.photobucket.com/albums/a23...14IMG_8812.jpg

Okay, now for the big guns. I have here a reverse ground 1/4" drill bit and a drill bushing with a 1/2" OD and a 1/4" ID.
http://i8.photobucket.com/albums/a23...15IMG_8805.jpg

http://i8.photobucket.com/albums/a23...16IMG_8806.jpg

Now to drill the 1/4" hole. My goal here is to drill the hole about 1/4" to 3/8" deep. This will be enough for my easy-out to grab onto the broken stud. No need to go any further.
http://i8.photobucket.com/albums/a23...18IMG_8808.jpg

So now the hole is drilled (about 3/8" deep) there is no longer any need for the drill bushing. To remove, I simply hit it with a hammer and break it off.
http://i8.photobucket.com/albums/a23...19IMG_8813.jpg

Here's the finished hole.
http://i8.photobucket.com/albums/a23...20IMG_8814.jpg

It's time to break out the easy-out kit. IMO, Snap-on (or Blue Point) makes the best easy-outs. Those spiral ones are a joke. The Snap-on ones may cost a bit more, but in my opinion you can't afford not to have them.
http://i8.photobucket.com/albums/a23...21IMG_8818.jpg

http://i8.photobucket.com/albums/a23...22IMG_8829.jpg

I have selected the 1/4" extractor.
http://i8.photobucket.com/albums/a23...23IMG_8816.jpg

http://i8.photobucket.com/albums/a23...24IMG_8817.jpg

A 1/4" hole is a tight fit for the extractor, but it can be driven in with a hammer. I drive in all the way to insure good surface contact.
http://i8.photobucket.com/albums/a23...27IMG_8820.jpg

Now the extractor nut can be slid on.
http://i8.photobucket.com/albums/a23...28IMG_8821.jpg

The next 2 pictures need no explanation :sfr: .
http://i8.photobucket.com/albums/a23...29IMG_8822.jpg

http://i8.photobucket.com/albums/a23...30IMG_8823.jpg

Remember the step of drilling the pilot hole completely through? Here's why.
http://i8.photobucket.com/albums/a23...31IMG_8825.jpg

http://i8.photobucket.com/albums/a23...32IMG_8826.jpg

http://i8.photobucket.com/albums/a23...33IMG_8827.jpg

Now for the best picture of them all :thmbup: . Tim
http://i8.photobucket.com/albums/a23...r/IMG_8907.jpg


Note: Exhaust manifold = Toyota Part #17141-72010 $122.34, Stud = Toyota Part #90116-10063 $.80, Nut = Toyota Part #90179-10051 $1.24, Valve Grind Gasket Kit = Toyota Part #04112-73035 $92.71.

hey tim, two questions.

-What is a valve grind gasket kit? its mentioned in your parts list but not in the post anywhere. Do i need that to fix a broken stud (its $93)?

-Is it worth replacing all 8 of the studs while you have the manifold off? or are they not as prone to breaking.

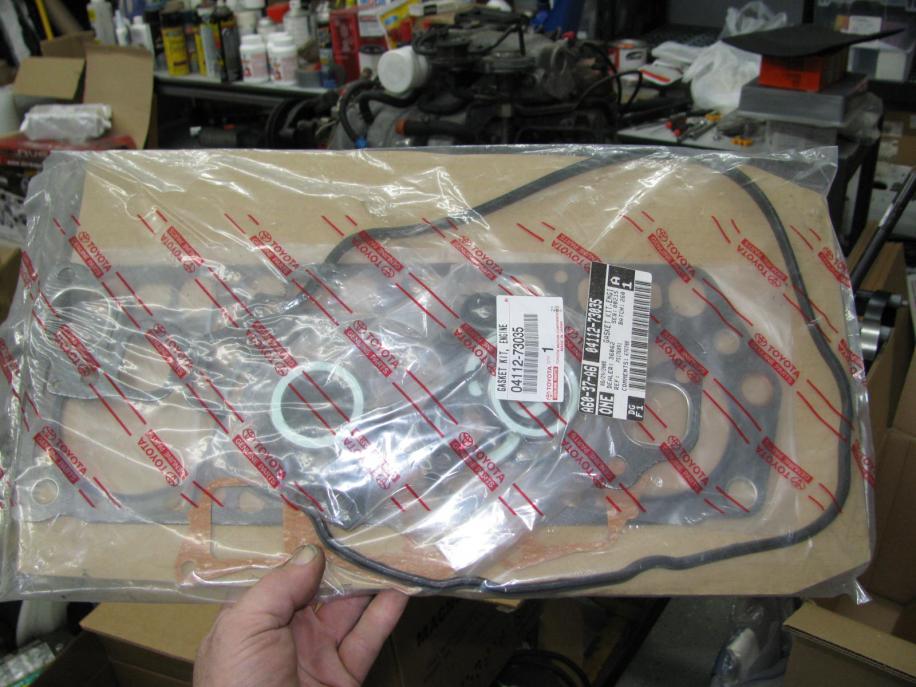

I like to have that kit on hand while doing "top end" work as it has pretty much everything you need and you only need to order one part number. It is however a bit of overkill if you're not removing the head. It includes a head gasket, valve cover gasket, valve cover stud seals, intake/exhaust gasket, exhaust donut gaskets, fuel system crush washers, EGR gasket, plenum gasket, valve stem seals, heater system return line gasket, and misc other small gaskets). If you're looking to save money just buy the individual parts you need. It's the head gasket that makes that kit expensive. Tim

Attachment 4592

It's probably not a bad idea to replace all the studs, but it's typically only that back one that breaks. When I rework a head I usually only replace the broken studs. I'll usually replace that back one even if it isn't broken (yet) because that one almost always breaks @ ~150k miles. Tim

Hey Tim -

I've read on the forum that you highly advise against aftermarket gaskets, and I wanted to double check that this goes for the exhaust/intake manifold gaskets also.

I have been purchasing my parts individually, and already have the headgasket and almost all the other gaskets. I also purchased a Felpro exhaust/intake gasket because Toyota had this one discontinued.

Is it worth the $85 to get the genuine Toyota exhaust/intake gaskets? I would have all the other parts, heagasket included, left over.

Thanks!
Hugh

Quote:

---

Originally Posted by hughdawgmmkay

Hey Tim -

I've read on the forum that you highly advise against aftermarket gaskets,

---

I'm not too concerned with the other simple gaskets. I will frequently use Felpro and/or generic gaskets for everything except to seal the head to the block. The head gasket is somewhat complex. There are strong steel parts that seal around some critical areas then soft rubbery parts that seal around other areas. Quality of materials and proper amounts/thicknesses are critical. Toyota has spent millions of $$$ over the years in research and product improvements, so I'm most confident in their head gaskets. I have no doubt that others may be "as good" or possibly "even better", but I have no idea what those products may be, nor do I wish to experiment to find out (too much riding on your head gasket). Just my 2¢. Tim

PS: Because the 4y is not something most parts stores stock parts for anymore, and since I use my van for a daily driver, I make it a point to have enough gaskets on hand to reseal any part of a 4y. Initially I purchased Toyota's "valve grind gasket kit", then use individual gaskets as required when making misc repairs. During small repairs I keep track of what parts I use, then reorder the individual gaskets to "restore" the kit. If things work for you the way they usually work for me, you'll find out you need some weird gasket on a Sunday and be SOL. I just feel better knowing I have a complete kit. Tim

Awesome, great stuff Tim! Thanks for the clarification, that really helps!

I definitely have a Toyota head gasket on hand, and plan on throwing on my rebuilt head in the next few weeks. I ended up doing some searching and found a site that still had the Toyota manifold gasket in stock, so I went ahead and grabbed one for $20 shipped. Guess I'll just have a Felpro manifold gasket on the side now in case something goes wrong down the line :)

Hugh

​Hey Tim - regarding gaskets other than the head gasket -- specifically, the ones for the throttle body and the EGR -- is it acceptable to use gasket paper? I am in the process of replacing my head gasket and everything else I can think of, and the toyota kit (04112-73035) does not seem to include these. Should I instead be looking for aftermarket gaskets specific to these applications, or is paper ok? I ordered FelPro paper set 3060.

Relatedly, I also picked up a tube of Toyota FIPG. I know you have said elsewhere NOT to use this on the head gasket, but where is it particularly important that I DO use some?

One more question: when installing new exhaust bolts, is there a torque spec or some guideline as to how you know they're all the way in?

Thanks! This site is an amazing resource, without which I could never have undertaken any of this.

Tim, Great info! Although i hope i never have to fix a broken stud. I have to wonder how it is that your steel coolant line in the final picture looks like new? Is it re-plated? They are usually in less than desirable shape. I had to replace a rusted out one years ago and was lucky enough to find a decent one at Pick N Pull. Do you have any good sources should i need another in the future? Many thanks for all your help. -john

Quote:

---

Originally Posted by VanDown

​Hey Tim - regarding gaskets other than the head gasket -- specifically, the ones for the throttle body and the EGR -- is it acceptable to use gasket paper? I am in the process of replacing my head gasket and everything else I can think of, and the toyota kit (04112-73035) does not seem to include these. Should I instead be looking for aftermarket gaskets specific to these applications, or is paper ok? I ordered FelPro paper set 3060.

Relatedly, I also picked up a tube of Toyota FIPG. I know you have said elsewhere NOT to use this on the head gasket, but where is it particularly important that I DO use some?

One more question: when installing new exhaust bolts, is there a torque spec or some guideline as to how you know they're all the way in?

Thanks! This site is an amazing resource, without which I could never have undertaken any of this.

---

Sorry about taking so long to reply. With the cold weather we've had a bunch of late night emergency jobs so not much time left over for the forum. You can definitely make your own TB gasket, but why? Just get one from Toyota or one of the on-line sites. The part number is listed at the bottom of THIS POST. If you do end up making one, just be sure to use "gasket making material" because regular paper or cardboard may not hold up to the punishment. Most auto parts stores will sell this material in different sizes and thicknesses.

FIPG has many uses. You can view MY BLOGS or THIS THREAD to see where it's used and how much.

Regarding the studs, there's a shoulder that stops them from going in too deep. Just jam them in there until they bottom out. I usually put a little extra crank on them to make them snug. Doing that helps keep them in the head so they don't come out with the nuts. Using double nuts is a good way to drive them home without damage. Tim

Quote:

---

Originally Posted by CargoPanel111

Tim, Great info! Although i hope i never have to fix a broken stud. I have to wonder how it is that your steel coolant line in the final picture looks like new? Is it re-plated? They are usually in less than desirable shape. I had to replace a rusted out one years ago and was lucky enough to find a decent one at Pick N Pull. Do you have any good sources should i need another in the future? Many thanks for all your help. -john

---

Hi John,

That steel line is the original one from my 89 cargo van. It was a CA vehicle so it didn't experience salted roads. The PO also did a good job keeping clean antifreeze in the engine so it was good on the inside too. It was stained and dirty when I got it, but I tend to get a little OCD with cleaning and I worked it over with Scotch Bright and Solvent not long before that pic was taken :wnk:. BTW, whenever I see things like that at the pick-n-pull I take them because I know they're next to impossible to find otherwise. Tim

Tim, thanks for all the info!

Quote:

---

Originally Posted by timsrv

You can definitely make your own TB gasket, but why? Just get one from Toyota or one of the on-line sites. The part number is listed at the bottom of THIS POST. If you do end up making one, just be sure to use "gasket making material" because regular paper or cardboard may not hold up to the punishment. Most auto parts stores will sell this material in different sizes and thicknesses.

---

I omitted a critical detail: the TB gasket (Toyota part #22271-73011), is now NLA. I am going to proceed with the felpro gasket paper, unless anyone can point me towards an aftermarket one or a discount seller that still has some in stock.

https://www.ebay.com/itm/Toyota-2227...4AAOSw42JZM~ID

It's also included in these 2 gasket sets:

https://www.ebay.com/itm/86-89-Toyot...frcectupt=true

https://www.rockauto.com/en/parts/en...sket+set,10392

Hi Tim, Your finished job looks great. I hope to find an opportunity to pick up another coolant line as a spare, but the vans don't show up in wrecking yards as often as the good old days. Regarding the TPS replacement and adjustment...i thought that i saw that there was a video on TVT but now i can't seem to find it again. Some time soon i need to do this. Perhaps you can steer me the right direction. Many thanks! -john

Quote:

---

Originally Posted by CargoPanel111

Regarding the TPS replacement and adjustment...i thought that i saw that there was a video on TVT but now i can't seem to find it again. Some time soon i need to do this. Perhaps you can steer me the right direction. Many thanks! -john

---

Click on the link in post #9 & 11 (this thread). The video is at the bottom of my 1st post in the throttle body thread.
