The WHAT-IS-THIS-PART and WHAT'S-THE-PART-NUMBER Thread for US Toyota Vans 1984-1989

And please post back to confirm : Worky.. No worky :wnk:

Not sure what this connection is, but I have a small leak and would like to know how to properly fix it. Photo of it attached

Also, is there a good diagram image that lists all the parts/connections on the engine?

Thanks

Power steering hose.
It is also the reason for your alternator failure.
The search function is your friend here.

Anyone have the part number? Thanks.

EDIT: Both are NLA

85420-28020

this the solenoid mounted externally on the left side if I understand correctly


And this as well its the overdrive relay that is mounted under the console/shifter

89531-28010

Excellent! Thank you

Looks like it’s a “discontinued part” 😤.

Which fuse is the efi fuse? I want to clear my codes and was directed to the fuse box and then to remove the efi fuse for 10 seconds. Only problem is my 1987 doesn't have a designated efi fuse. So which fuse do I pull? (Ign/eng/ecu???) Please help Zman.

HERE is the thread with the link to the article that shows the fuse box diagram; the 15A fuse in the separate portion on the right of the block is the EFI fuse.

Gwen

Hey looking to any ideas to what part this is or a part number.

this part came directly of the fuel tank it is a part of the main line,
I thought it was a fuel filter and removed it to be replaced it got broken in the time after.
I went to Napa and other places and no one knows what it is.

it came of the stock fuel lines, and unfortunately has no part number

i have a 1987 Toyota Van with a manual transmission and 4x4
Thank you for any support an advice!

It's Toyota part #90917-10020 and is discussed in more detail starting on post #13 of THIS THREAD

Quote:

---

Originally Posted by timsrv

It's Toyota part #90917-10020 and is discussed in more detail starting on post #13 of THIS THREAD

---

thank you !

Hello,

Is the part number known for the Mud Flap Bolts? I have an 88 LE.

I have some flaps, but no bolts. Didn't know if anyone had any expertise.

THANK YOU!

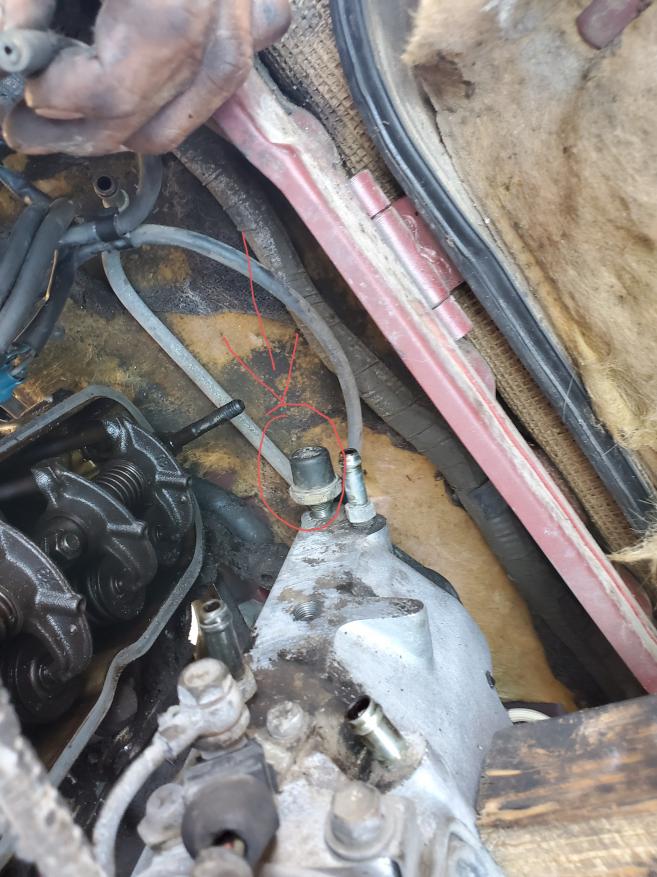

Hello fellars, trying to figure out what is this little guy. Any help is highly appreciated.

Attachment 10348

It's called "FILTER, GAS, NO.1" and it's Toyota part #90917-11022.

https://www.ebay.com/sch/i.html?_fro...acat=0&_sop=15

Thanks a lot, Tim!
Ps I am recoring the radiator I salvaged with John, yuba city. 4 row high efficiency.

Attachment 10392

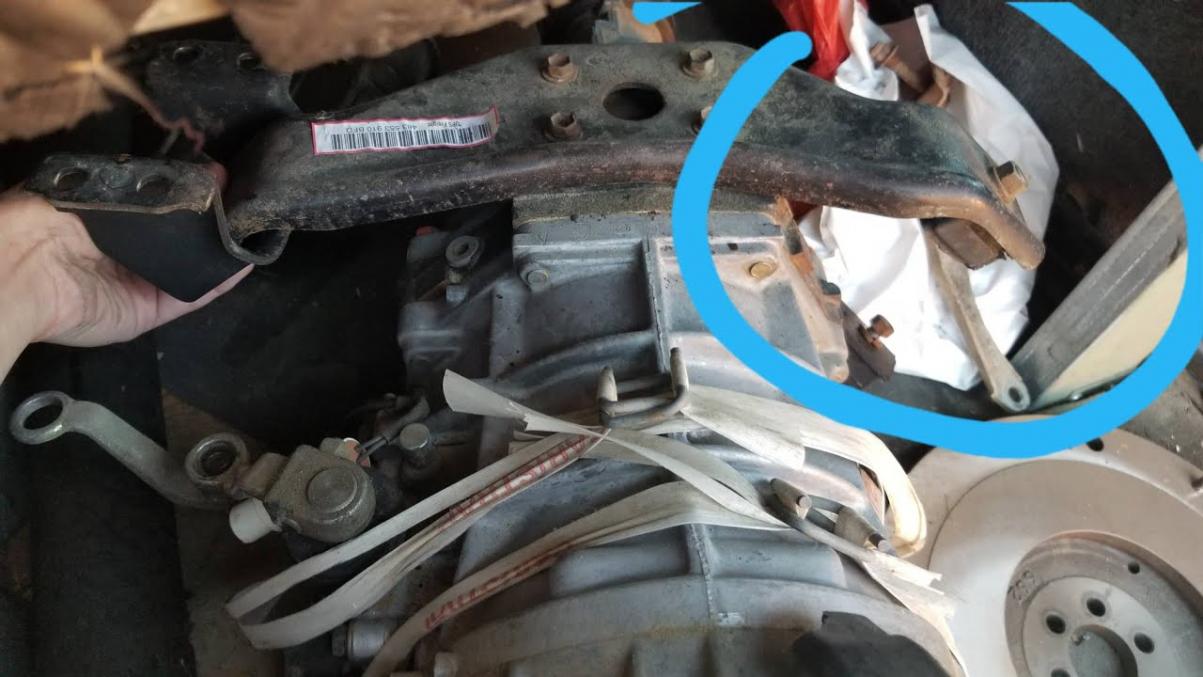

Circled missing bracket. 86 manual G53.

https://www.amayama.com/en/part/toyota/1232613010
This page for item 1232613010 shows schematics labeling the brackets as both as the SAME number 12322.

Found this which might have a part
https://oemparts.stonemttoyota.com/p...232613010.html
But sadly the store here is sure that almost every bracket will fit every year van and every transmission type, which can't be true, so I'm not able to figure out what part is real.

Anyone have these part numbers for an 86 manual?

Also the grommet in the shift linkage hole if you have it!

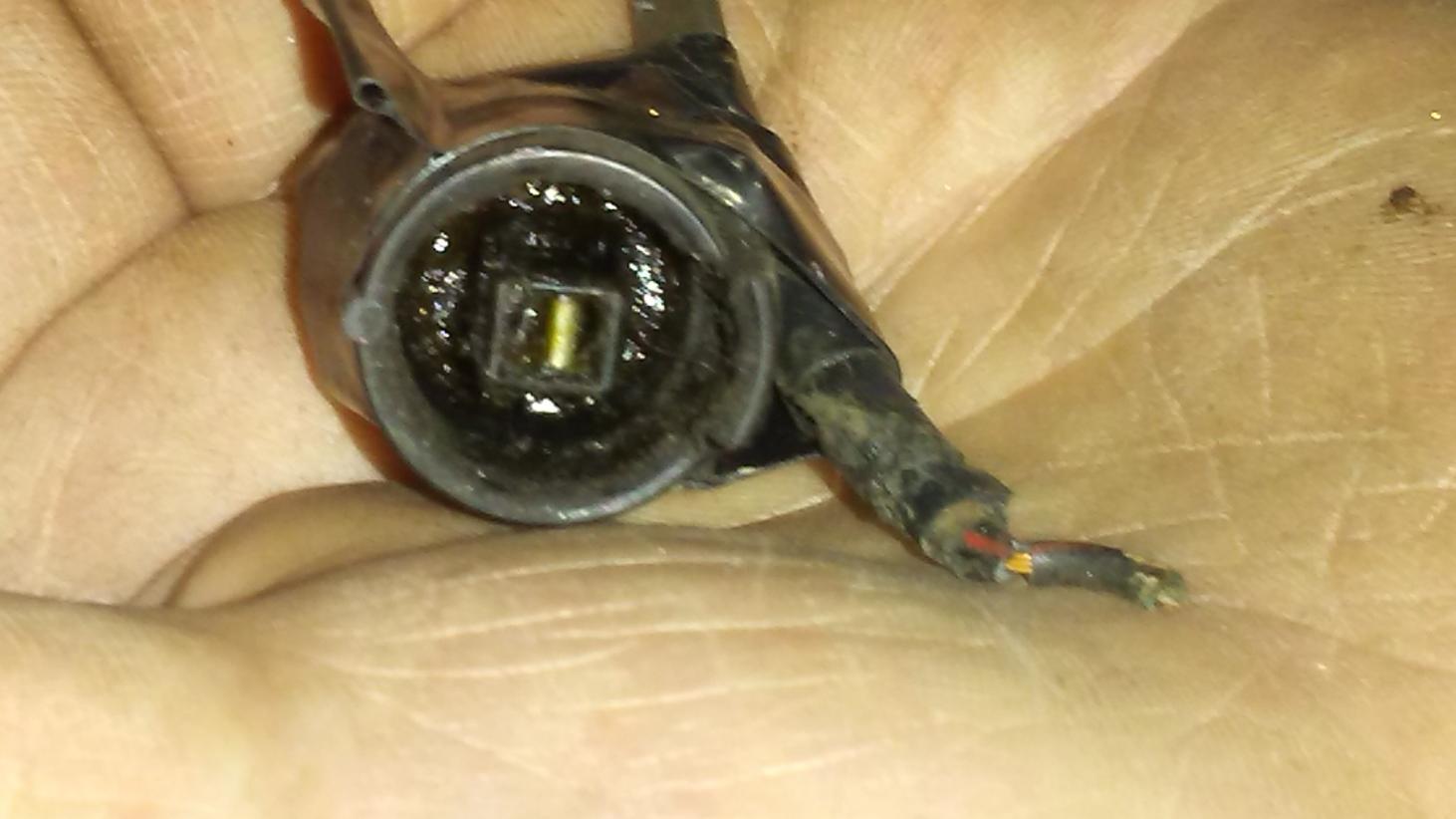

Any idea where this connector attaches?
The bridle leads it to be a few inches from the radiator cap, at top of the engine.
.... Also, what is its function?.... And is it even necessary?... The wire itself is fried and detached so I kinda hope I don't even need it!
... The connector itself it's a boat 5/8 inch diameter.
.... Any assistance is greatly appreciated, thank you.

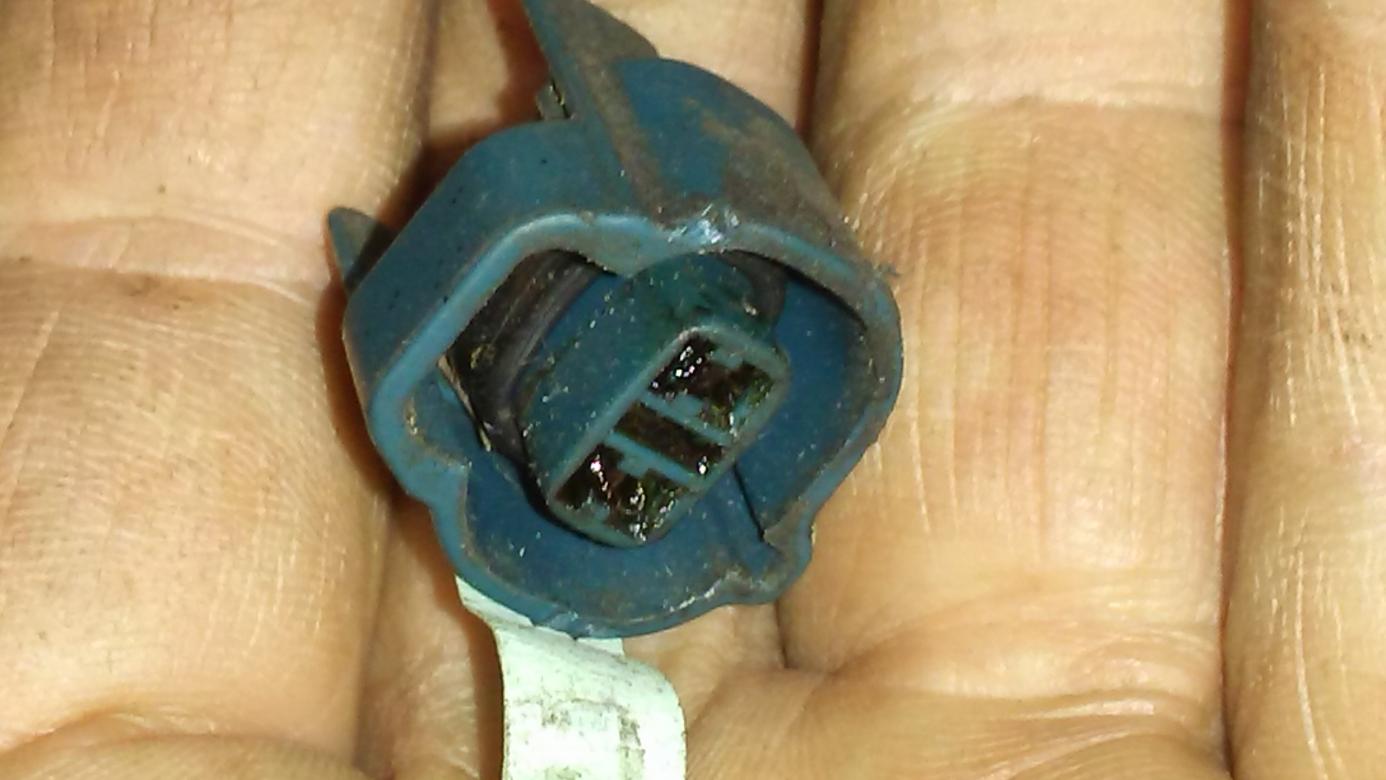

...edit... But wait,, there's more! Just one, thankfully,, the blue one is located on the passenger side of the head,, a ~4" lead, between spark plug 3 and 4,,,~3/4" size. Any ideas? <;~o

Attachment 10461Attachment 10462

Anyone? :cnfsd:

Does anyone know what the OEM part number is for the PCV valve for the 3Y engine? Not sure if it's different between the JDM and USDM vans but I have an '89 Master Ace which appears to be mechanically most similar to the '85 Van. Also, is there a recommendation on which brands to avoid? I've learned the hard way that some parts are not built like the others...
