The WHAT-IS-THIS-PART and WHAT'S-THE-PART-NUMBER Thread for US Toyota Vans 1984-1989

Interesting, mine doesn't have the upper cable.

Cruise control? :confused:

automatic kickdown cable isnt it?

The repair manual (Page AT-11 and AT-29) calls it the throttle cable.It activate down shift on the AT if I understand :cnfsd:

Hello Van Community,

Pretty new to the van forum.

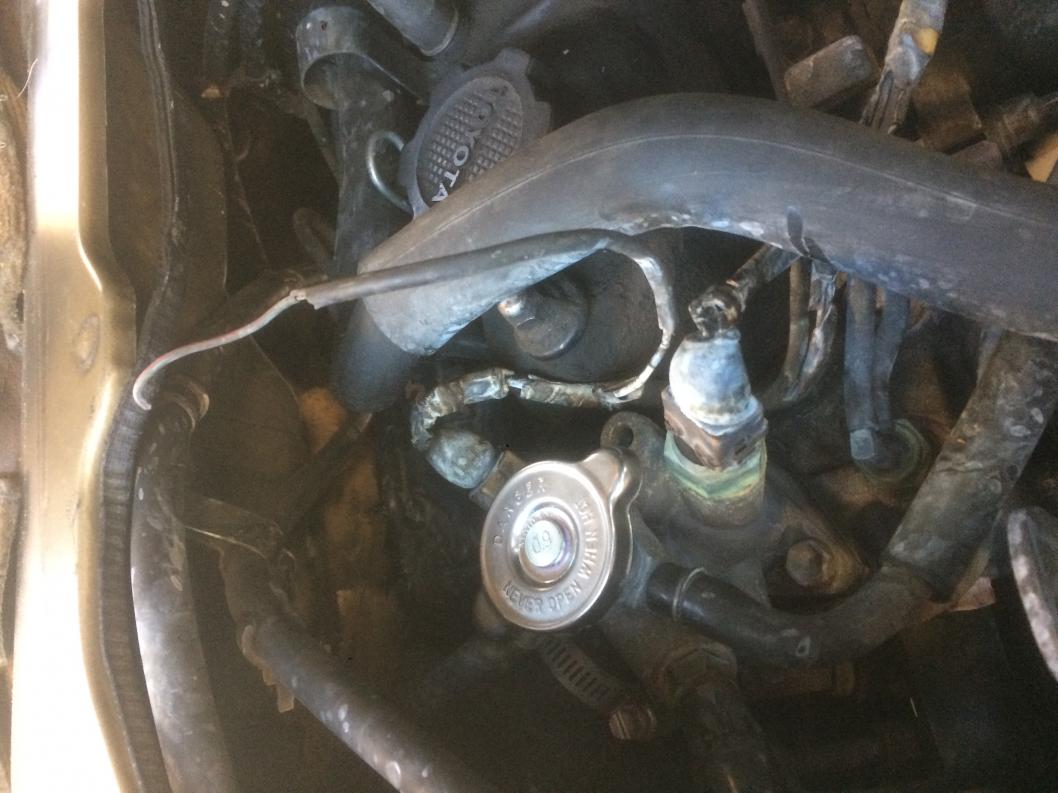

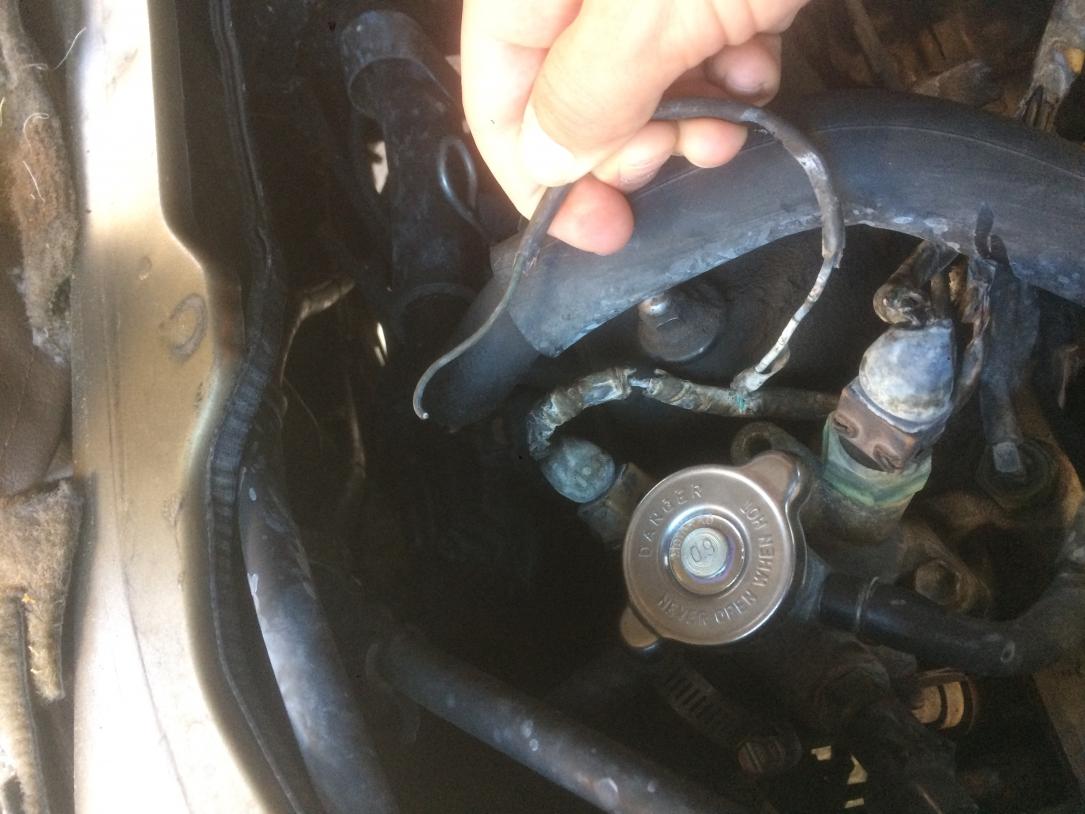

I've been slowly working on the van and plan on driving it to Brazil starting next summer. I came across this wire being cut. I noticed this after the van over heated.
Would anyone know where and what this wire belongs to.

Thanks in advance

Attachment 7729Attachment 7730

I searched to no avail...

I am ripping into the little van finally, and removed all the plywood from the cargo floor to find these. Three black plates bolted to the floor. They look factory~ish, not sure what to make of them though... What the heck are they for? Are they important or just a waste of steel?

Attachment 8085

1987 Cargo Van 4x4, if it makes a difference.

Ballast I believe. found the same when I was monstalining the interior of my 87 cargo 4wd van

Quote:

---

Originally Posted by bikerjosh

Ballast I believe. found the same when I was monstalining the interior of my 87 cargo 4wd van

---

Okay that's kind of what I figured...
I'm yanking them out, I don't think that 60 or 70 lb of Steel is going to make this pig any more stable. Ha...

Actually this has been asked at twice before: HERE and HERE

I realize when you don't know what something is called, you can't search for it by name. That's why we have the stickied "WHAT-IS-THIS-PART" threads.

Gwen

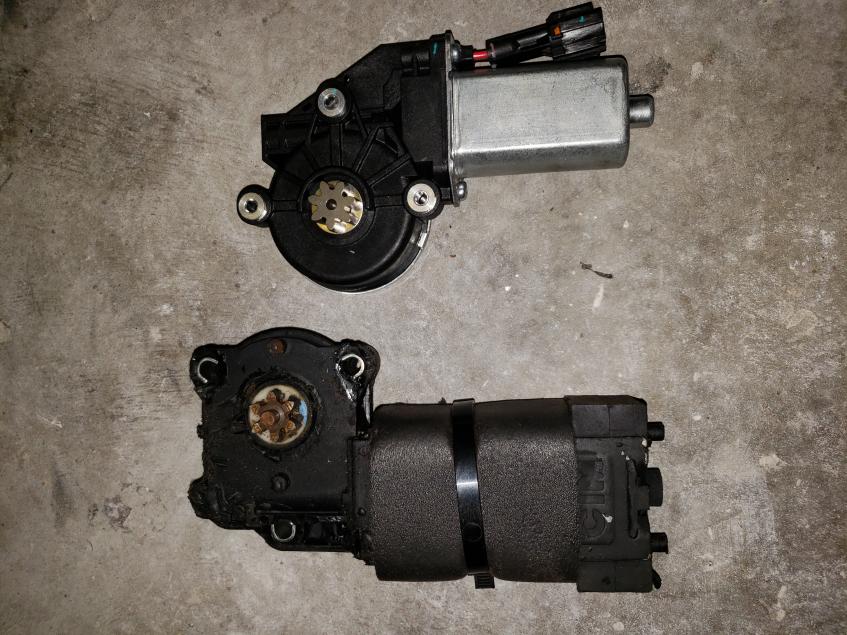

Part number for 89 driver side window lift motor? I ordered through advance Auto site and it's not even close.
Attachment 8095

Quote:

---

Originally Posted by syn

Part number for 89 driver side window lift motor? I ordered through advance Auto site and it's not even close.

---

Looks like the Toyota P/N is 8572016030.

When I use the search-by-part-number feature on Rock Auto, a couple of choices do come up. No idea if the Toyota version is discontinued or not; no power windows here ... :no:

Gwen

I have been scouring the electrical system today and have verified all of my plugs, save this one... At the air box portion of harness. two prong plug, one white wire with black stripe and a green wire. I have hunted for the other side of it, but see nothing to connect to. I also have a dangler underneath coming off the Alternator harness and believe it goes to a sensor for oil level (sucker is hard to get at! Would explain my red oil light remaining on. According to the FSM the red dummy light on the oil reads pressure AND level via this plug. Mine is an 87 cargo van , so that trim package/ gauge cluster has no option for the amber "oil level" light. Found the level switch and access is rough! Ha. Everything else electrically is accounted for though! :)

Attachment 8122

The search terms you want are "Fuel Pump Check Connector" and "Circuit Opening Relay" to narrow it down, just put all those words into the search box. Here's a good post to get you started:

https://www.toyotavantech.com/forum/...=3517#post3517

Edit: This is the Old cigarette lighter plug, traced the wiring diagram out in the FSM~ I recently took apart my dash and have ONE unaccouted for plug. I am guessing that it may have been for the factory lighter in the radio/ air mixer bezel??? It has a green (power), gray (ignition), and I think a couple of ground wires in it... The previous owner added an aftermarket cig lighter and connected it to the radio wires. :no:

Is my assumption right? I looked and couldn't find it...

Attachment 8140

My mechanic says I need to replace the L Inner Tie Rod End.

88' 4WD

Having trouble locating that part # - anyone got it handy?

Thanks.

Quote:

---

Originally Posted by cpginkpt

My mechanic says I need to replace the L Inner Tie Rod End.

88' 4WD

Having trouble locating that part # - anyone got it handy?

Thanks.

---

Amazon and Rock Auto is your best friend with these little vans:

https://www.amazon.com/ACDelco-45A11...ywords=tie+rod

https://www.rockauto.com/en/catalog/...e+rod+end,7428


Took me all of 3 minutes to find these dude. Just sayin'...

ah yes - I was searching for Tie Rod which is listed at Rock, but the correct part 45A1133 did not have the words "tie rod" next to it for some reason.

Once I crossed reference using your Amazon link (3 month backorder) with correct description then I could find it in Rock.

Thank you!

Hoping someone can help me identify what this part in the red circle is? Thank you!

Attachment 8211

Quote:

---

Originally Posted by Gambit

Hoping someone can help me identify what this part in the red circle is? Thank you!

Attachment 8211

---

Looiks like the infamous temp. vacuum switch. It is the source of made up curse words, so if it's intact, not broken... Don't touch it. Don't look at it. Leave that one alone! :dance2:

Quote:

---

Originally Posted by Flecker

Looiks like the infamous temp. vacuum switch. It is the source of made up curse words, so if it's intact, not broken... Don't touch it. Don't look at it. Leave that one alone! :dance2:

---

Oh boy... guessing by that response these are NLA?
